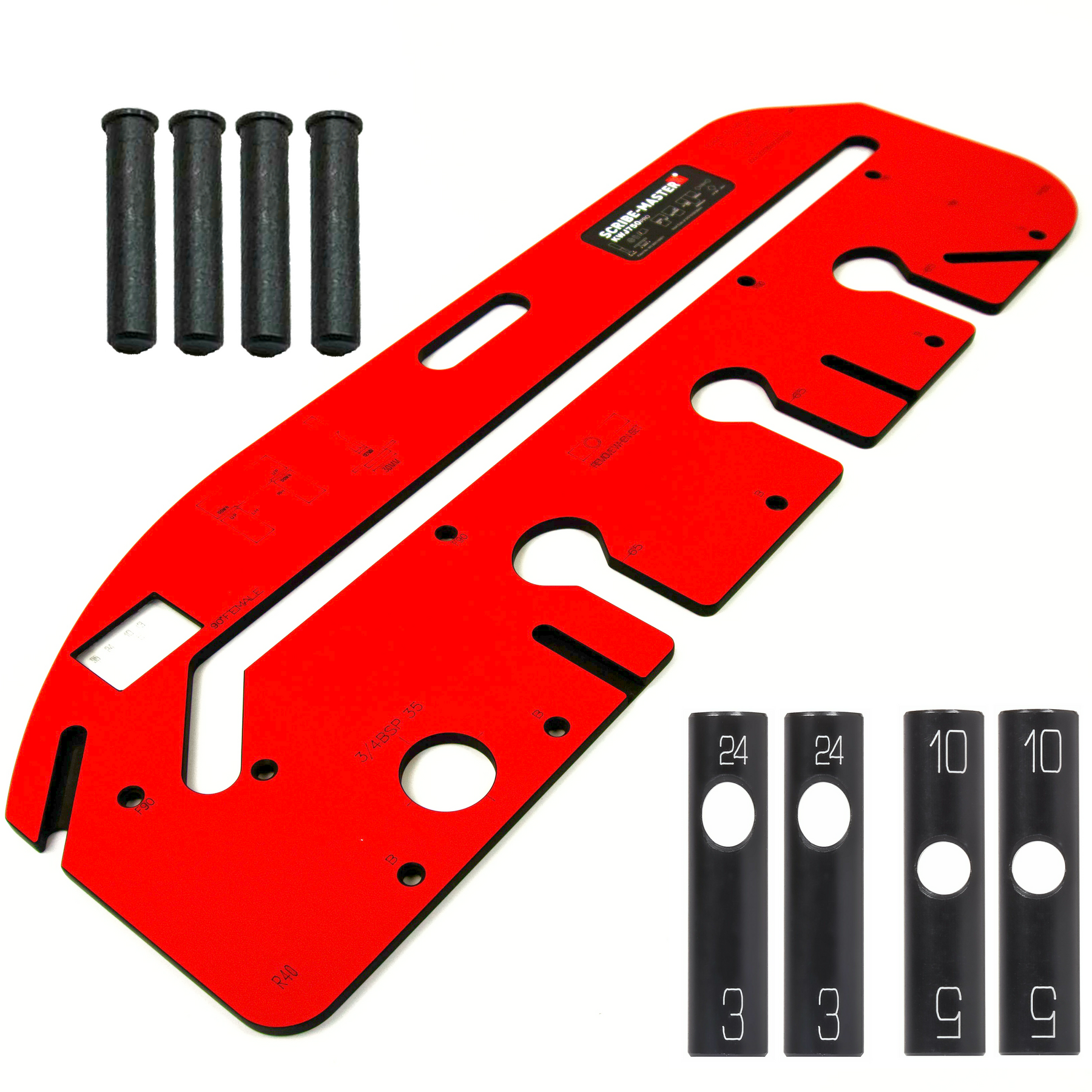

Scribe-Master KWJ750PRO 750mm Kitchen Worktop Router Jig – Mason’s Mitre Jointing Template, SightLine Front-Edge Alignment Window, 5 Backset Cams (3–35mm), 30mm Guide Bush Compatible, UK Made
  • SightLine Front-Edge Alignment – Align from the front edge using the SightLine window for fast, repeatable setup (no rear measuring).
  • Cuts Both Joints in One Setup – Routes male & female Mason’s mitres without re-setting the jig, helping reduce setup time and improve accuracy.
  • 30mm Guide Bush System – Designed for routers that accept a 30mm guide bush (common pro worktop-jig setup).
  • 5 Backset Cams (3–35mm) – Choose 3, 5, 10, 24 or 35mm backset to suit modern edge profiles including flush/handleless styles.

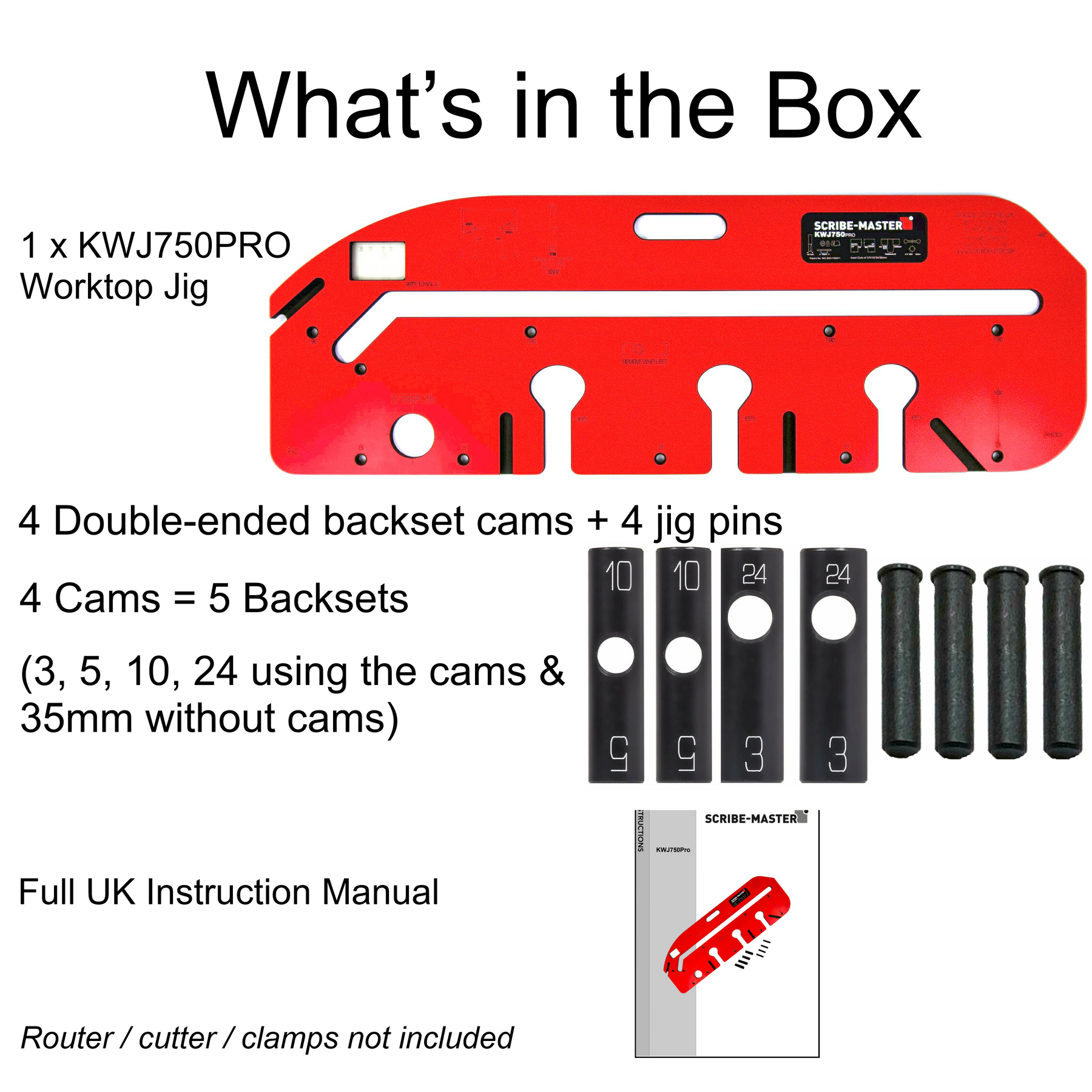

  • UK CNC-Made, Ready to Use – CNC-machined HPL jig with cams, pins and instructions included; built for repeatable professional work.
  • In stock, ready to ship
  • Inventory on the way
VAT included. Shipping calculated at checkout.

🔹 SCRIBE-MASTER – KWJ750 PRO

Multi-Backset Professional Worktop Jig with Sight Line Technology

The SCRIBE-MASTER KWJ750 PRO is a professional multi-backset kitchen worktop jig designed for installers who demand flexibility, precision and compatibility with modern kitchen designs. Covering joints from 150mm to 750mm, it incorporates five selectable backset options and flush-edge compatibility to meet contemporary installation standards.

Featuring patented Sight Line Technology, the KWJ750 PRO eliminates rear peg setting and allows precise front-edge alignment for faster, cleaner setup on site.

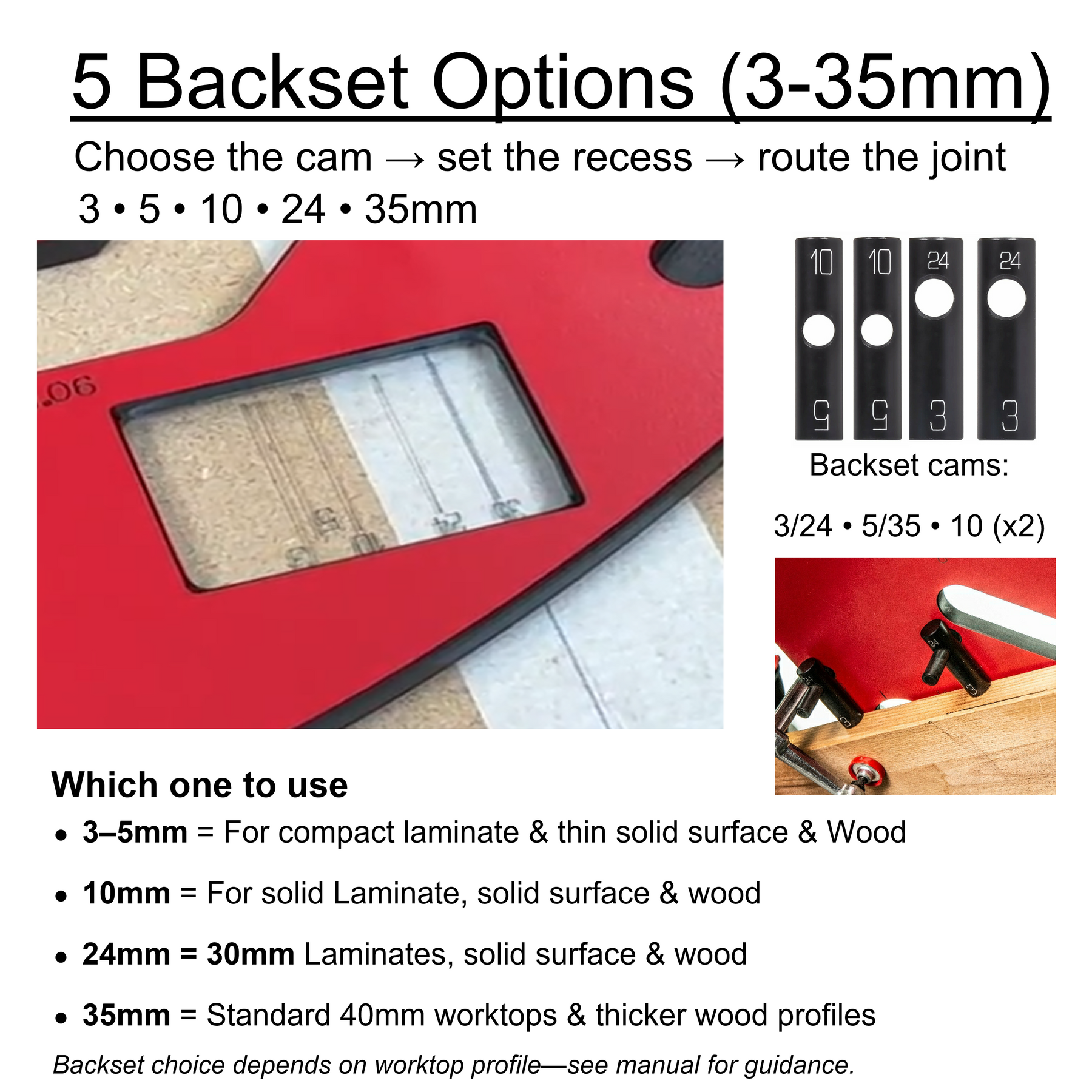

Advanced Backset Control (5 Options)

Unlike standard jigs limited to a single 35mm backset, the KWJ750 PRO includes:

3mm, 5mm, 10mm, 24mm and 35mm backset options

This allows compatibility with:

  • Modern handleless kitchens

  • Flush door designs

  • Slim and compact laminate worktops

  • Trending edge profiles

  • Custom overhang specifications

Flush Edge Compatibility

Allows worktops to be cut flush with cabinet doors for contemporary installations — without additional measuring or complex marking out.

Ideal for modern kitchen design trends.

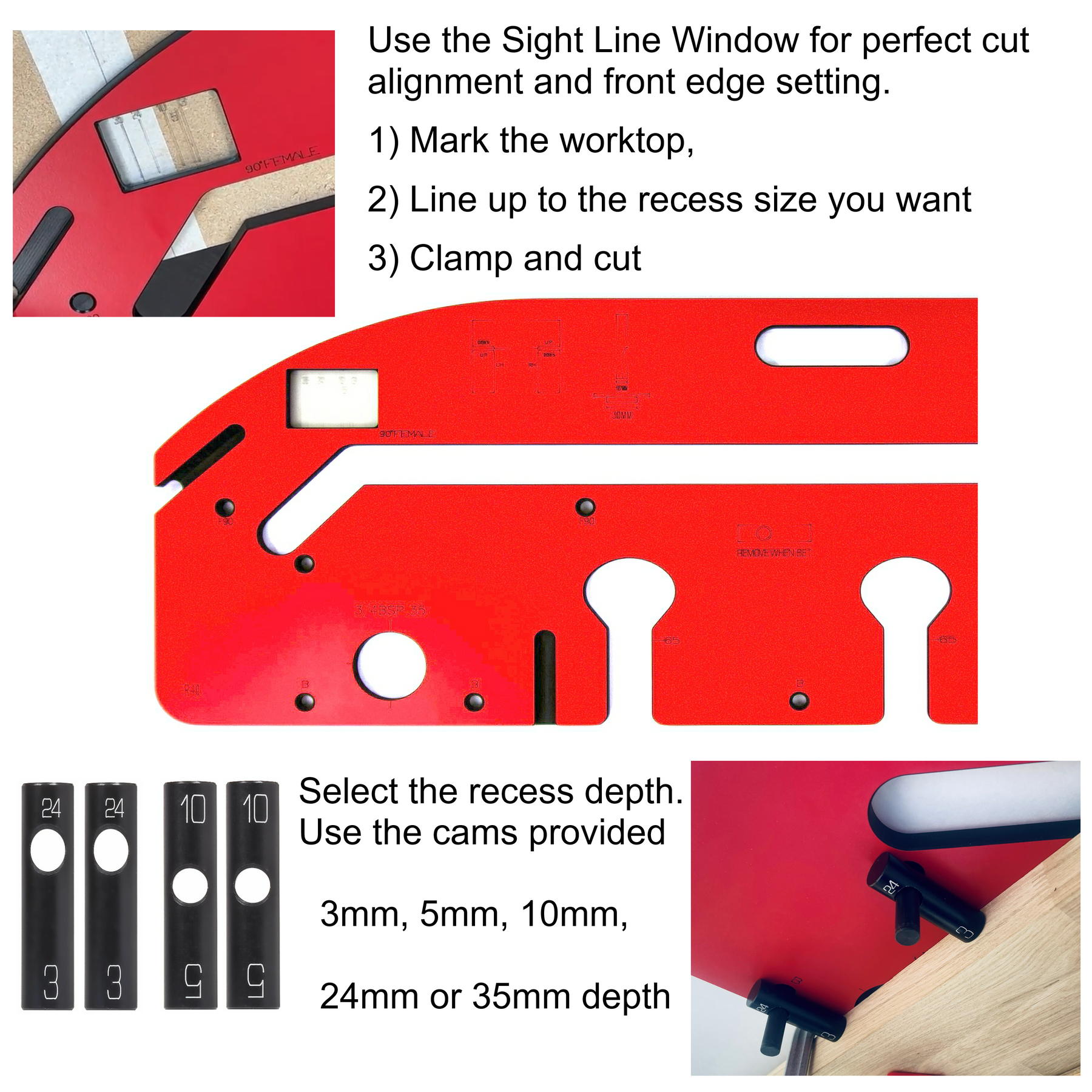

Sight Line Technology – Precision from the Front

  1. Mark your cut line

  2. Align with the front window

  3. Make the cut

No rear pegs.
No spacer blocks.
No preset width restrictions.

Any female cut length can be achieved directly from the front edge of the jig.

Designed for Professional Installers

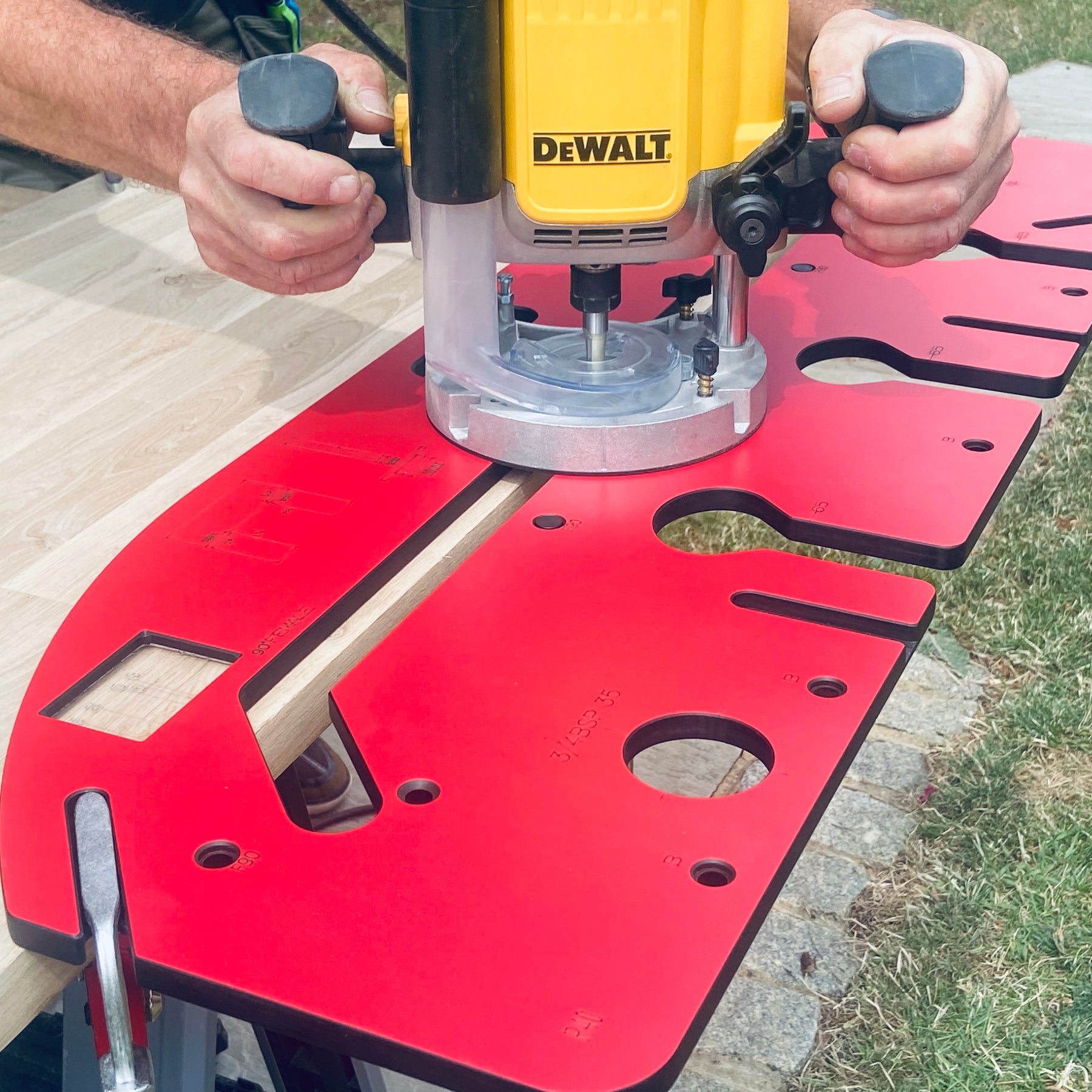

  • Single-pass joint cutting on narrower backsets (reduces router strain)

  • Fast male & female joint cutting (approx. 15 minutes including setup)

  • Compatible with compact laminate, composite, solid wood & laminate chipboard

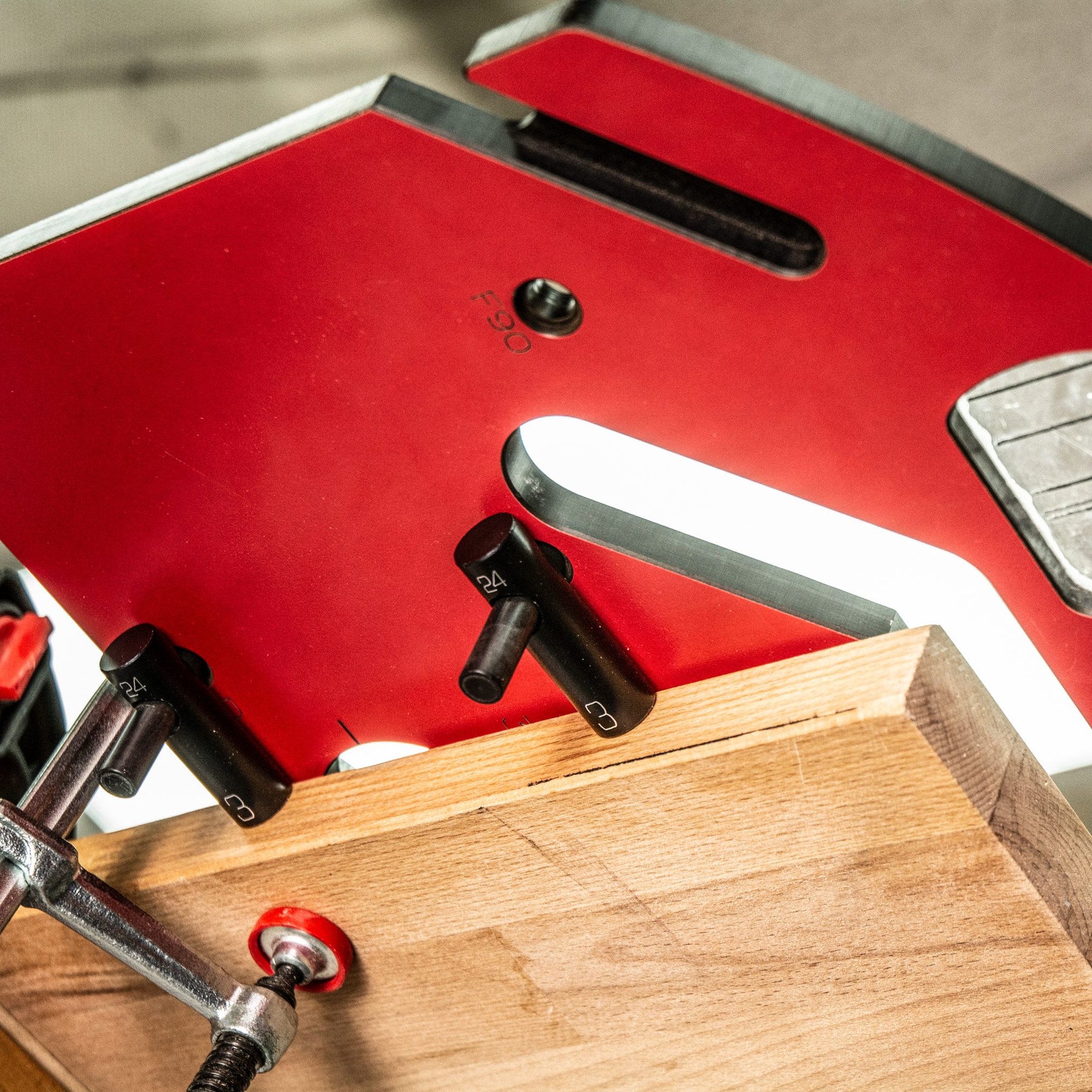

  • Offset cam system for consistent backset setting

  • Edge profile compatibility (square, small radius, postform, bullnose)

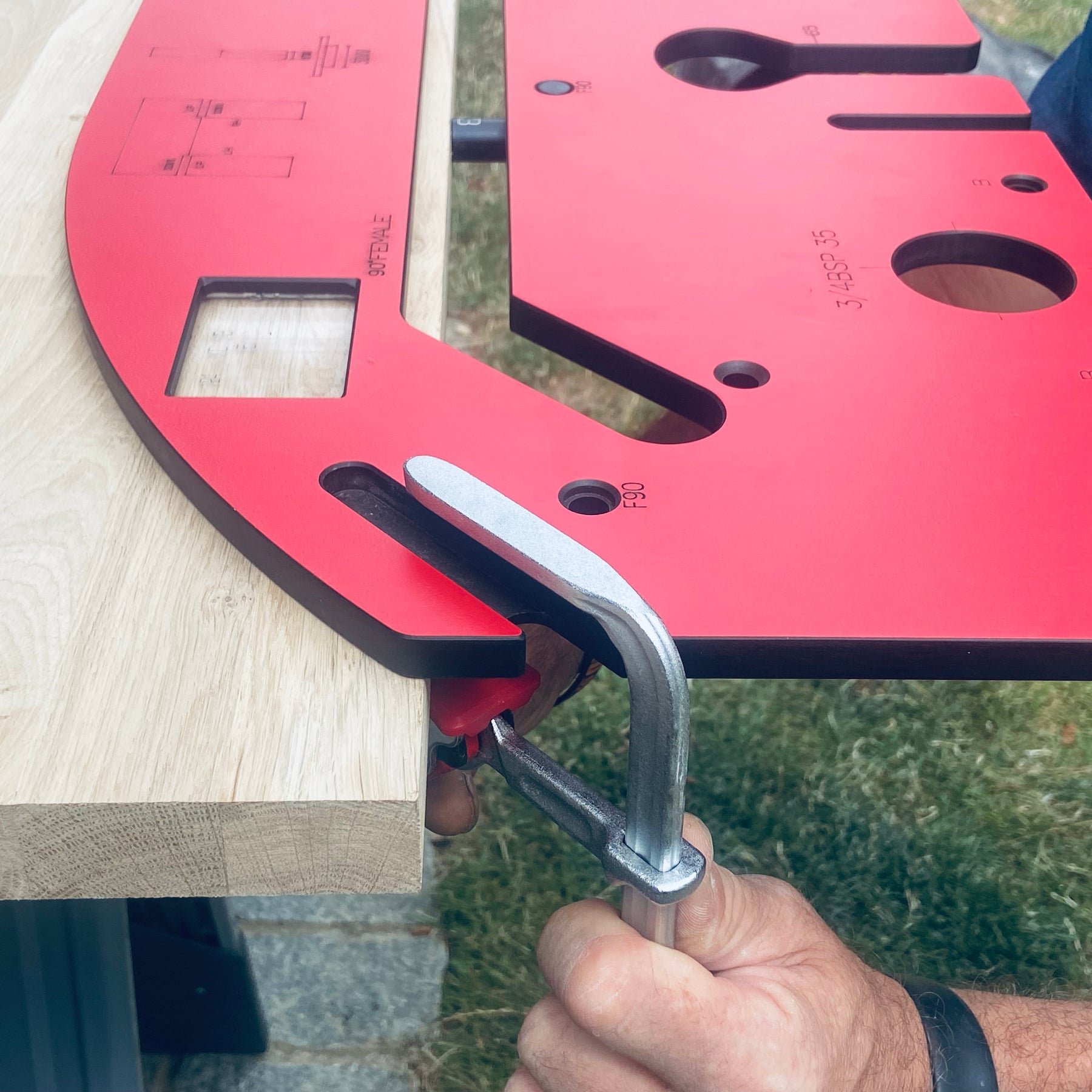

  • Clamp recesses for below-surface clamping

This jig is built for repeat professional use and modern specification kitchens.

Why Choose the KWJ750 PRO?

  • Multi-backset capability

  • Handles contemporary flush installations

  • Reduces setup time and router strain

  • Works with evolving worktop materials

  • Professional-grade build quality

If you regularly install kitchens to a high standard, the KWJ750 PRO offers the flexibility that entry and mid-range jigs simply cannot match.

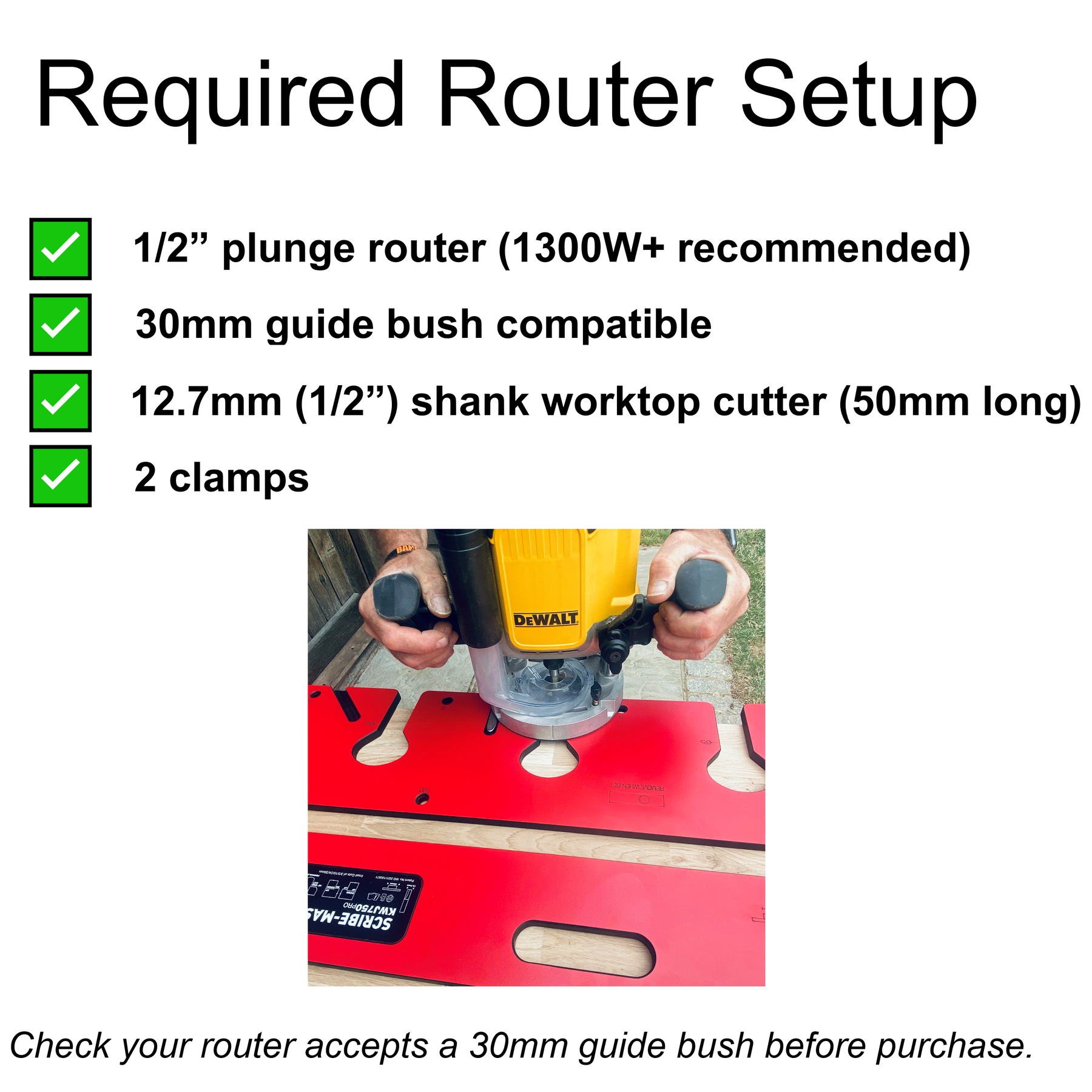

Router & Tool Requirements

  • Plunge router (½” collet, minimum 1300W)

  • 30mm guide bush (not included)

  • 12.7mm x 50mm cut worktop cutter (not included)

  • Two clamps (not included)

Specifications

Length: 985mm
Width: 335mm
Thickness: 12mm
Weight: 4.73kg
Backset Options: 3mm / 5mm / 10mm / 24mm / 35mm
Bolt Recesses: 3
Bolt Recess Centres: 175mm + 175mm
Bolt Recess Width: 14mm
Corner Radii: 40mm / 100mm / 400mm
End Cut: 45°
Corner Mitre Joint: 45°

Ideal For

  • Full-time kitchen installers

  • Handleless kitchen designs

  • Compact laminate specialists

  • Modern flush-edge installations

  • Installers upgrading from single-backset jigs
