Grade 13 Fire Door Hinges - Electro Brass Stainless Steel 101 x 76 x 3 mm -TIMco 334027
TIMco
Product Code: 334027

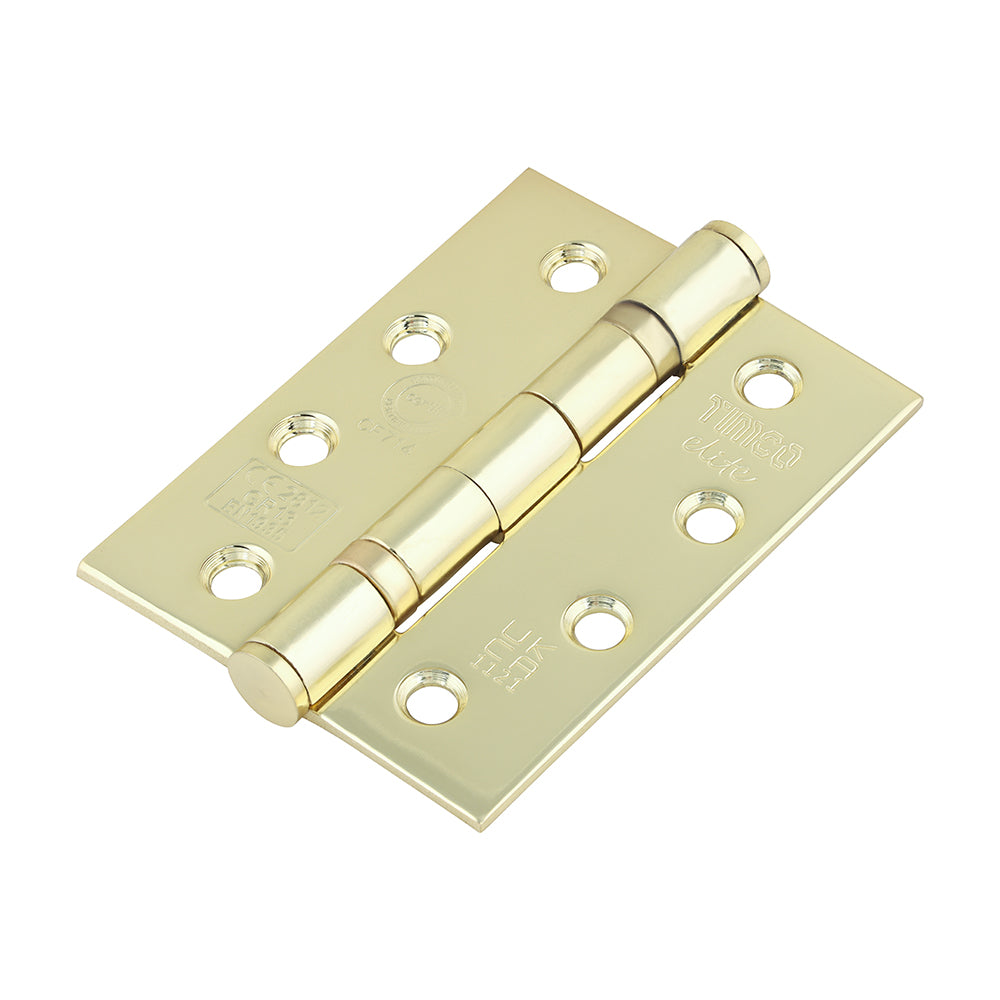

4" Roller bearing Fire Door Hinges
Electro Brass Stainless Steel
101 x 76 x 3mm

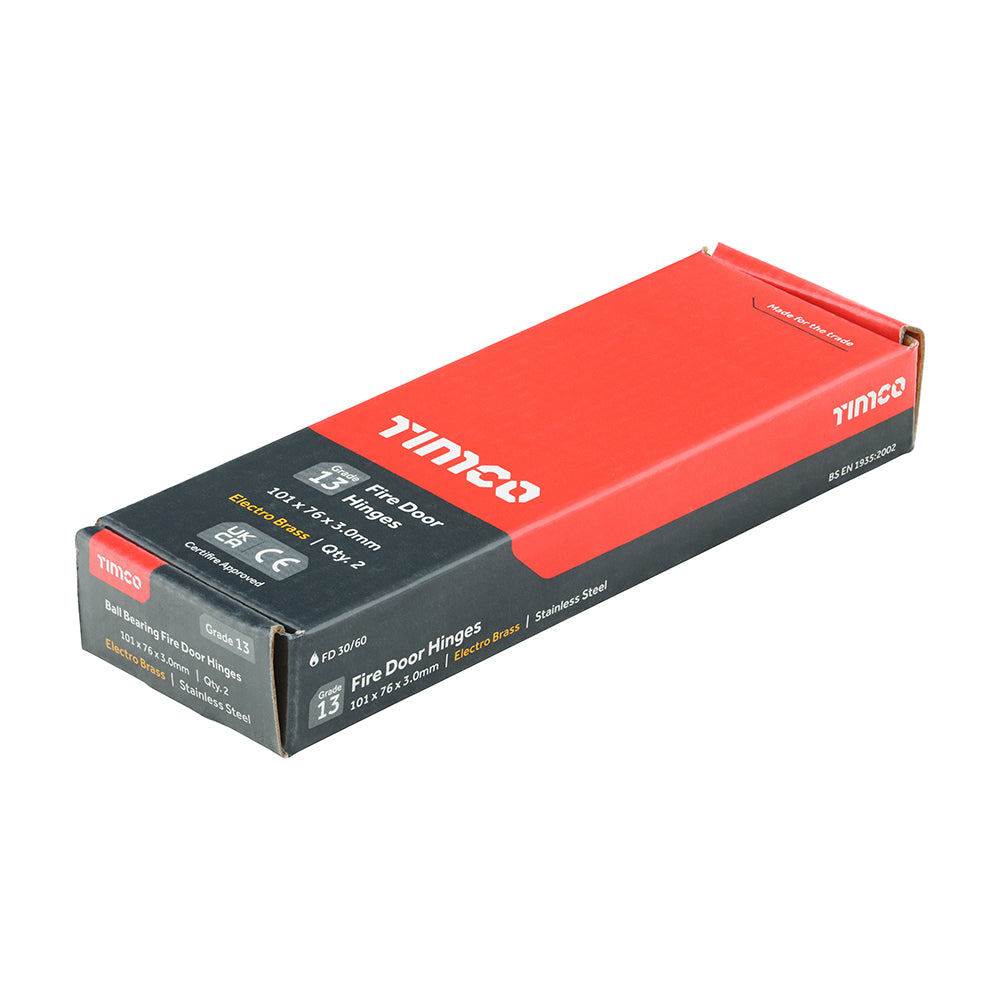

2 hinges per pack - complete with screws
Designed for use on heavy duty fire doors in public buildings. Lubricated ball bearing washers provide a lifetime of smooth door operation making them ideal for use with door closers as they reduce closing friction. Fixings included. *Fit with intumescent hinge pads (not included, sold separately product code 487385) when fitting fire doors to adhere to fire regulations.
• Smooth ball bearing action
• Suitable for 30 & 60 minute fire doors weighing up to 120kg
• For doors with heavy traffic - tested to 200,000 cycles
• CE Approved - BS EN 1935
|
Product Specifications
|
|
|
BS EN Classification
|
476114013 |
| CE Standard | BS EN 1935:2002 |
| Certifire Number | CF714 |
| Corner Type | Square |
| Corrosion Rating (1-5) | 3 - Urban & industrial areas with a low salt atmosphere |
| Finish | Electro Brass |
| Fire Rating | 30 & 60 Minutes |
| Grade | 13 |
| Knuckle Type | Ball Bearing |
| L (mm) | 101 |
| Length x Width (mm) | 101 x 76 |
| Material | Stainless Steel |
| No. Of CSK Screws | 16 |
| Pack Dimensions L x W x H (mm) | 162 x 58 x 26 |
| Pack Type | Box |
| Pack Weight (kg) | 0.56 |
| Rec. Screw Gauge (imp.) | 10 |
| Rec. Screw Ø (mm) | 5 |
| Screw Size (imp.) | 10 x 1 1/4 |
| Screw Size (mm) | 5.0 x 30 |
| Thickness (mm) | 3 |
