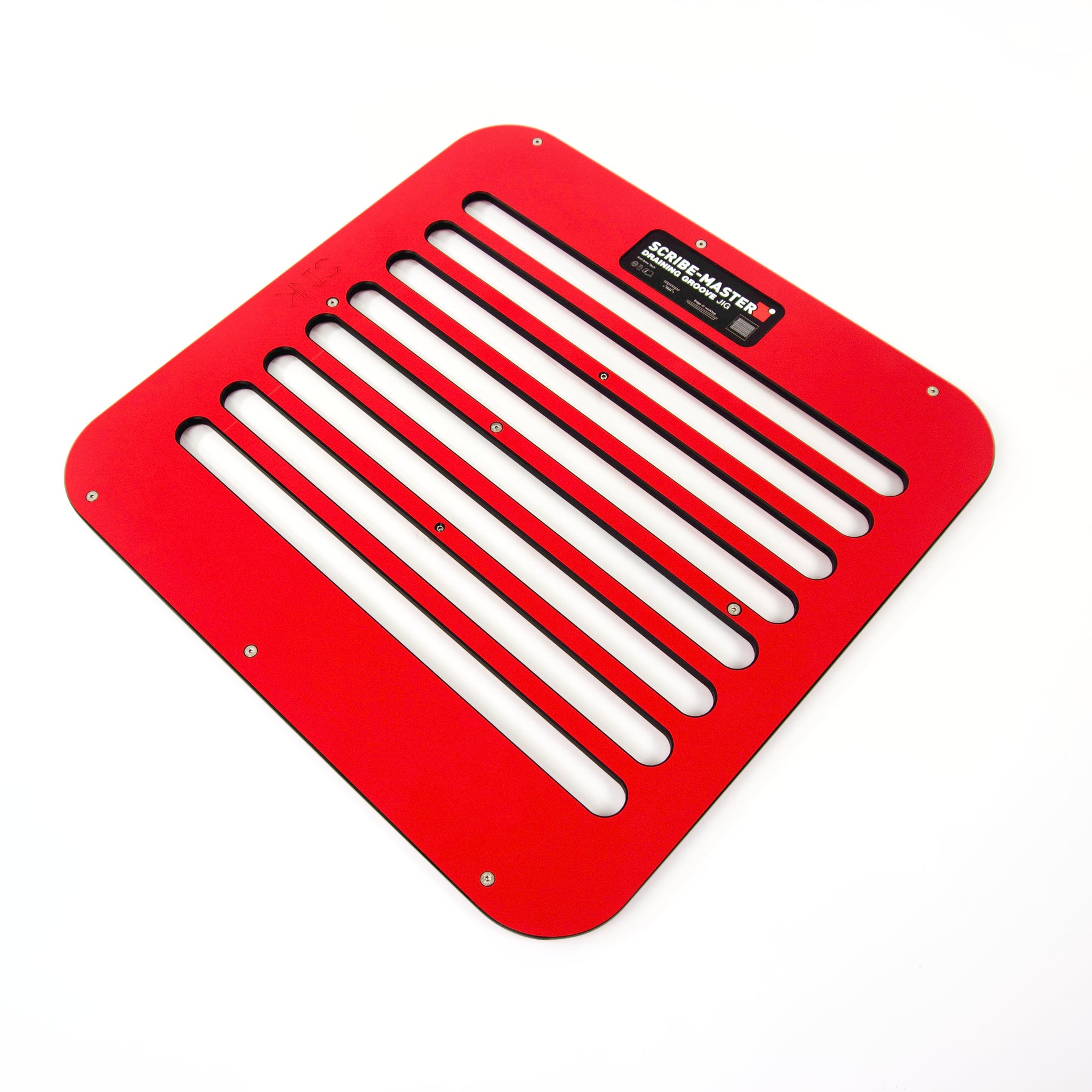

🔹 SCRIBE-MASTER – DGJIG

Drainer Groove Routing Jig for Timber & Compact Laminate (With Flex-Tech)

The SCRIBE-MASTER DGJIG is a precision routing jig designed for cutting clean, consistent drainer grooves in solid timber and compact laminate worktops. Engineered for professional kitchen installers and fabricators, it delivers repeatable accuracy while maintaining a built-in 0.5° fall for effective water runoff.

Manufactured from CNC-machined Compact Grade HPL and incorporating Flex-Tech anti-bow technology, the DGJIG ensures stable routing performance — even when using heavier ½” plunge routers.

What the DGJIG Does

• Routes drainer grooves in solid timber

• Cuts grooves in compact laminate worktops

• Maintains a 0.5° fall for water drainage

• Produces 8 evenly spaced grooves at 50mm pitch

• Supports consistent, professional sink installations

Ideal for Belfast, farmhouse and undermount sink installations.

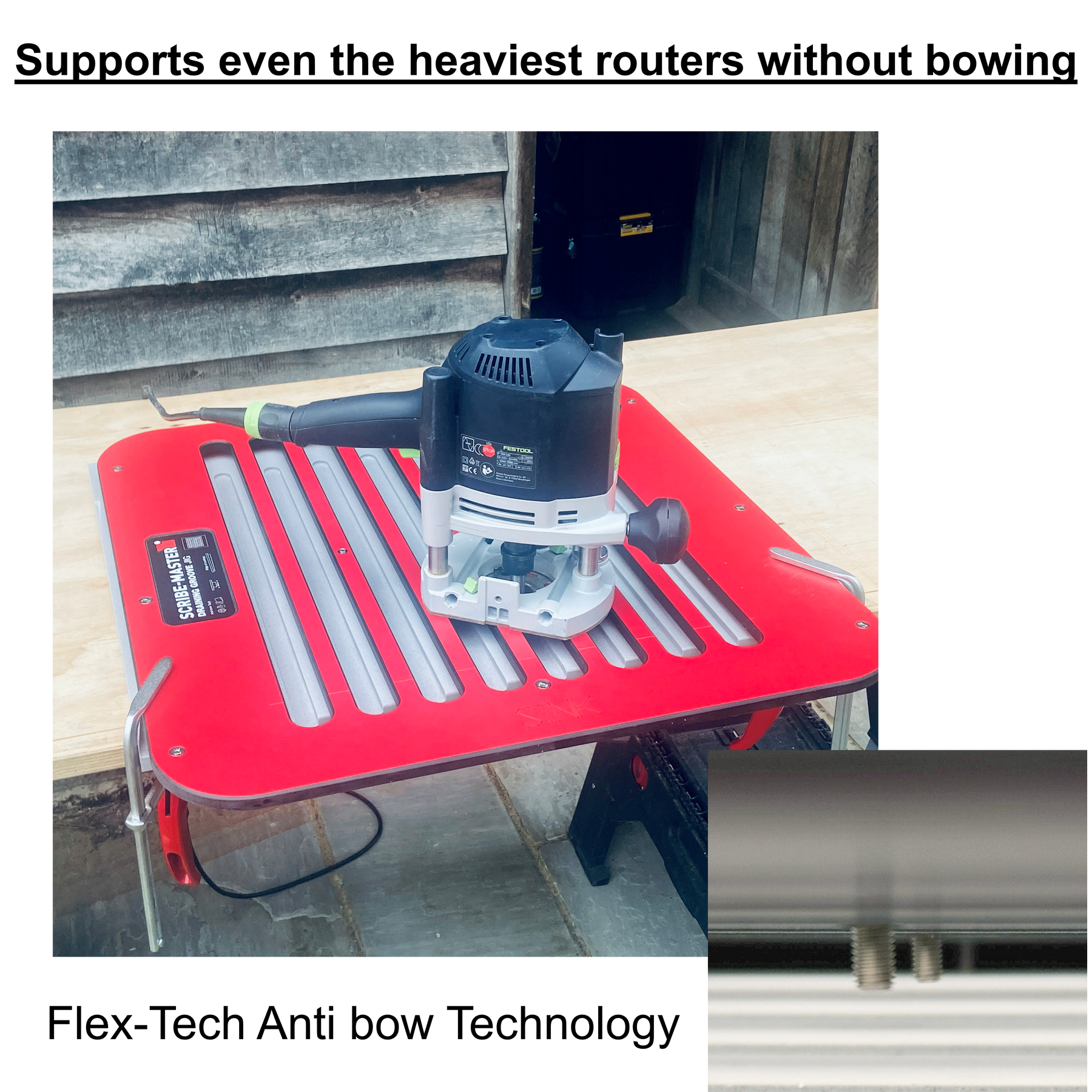

Flex-Tech Stability System

When routing with heavier ½” routers, jig rails can flex or bow, leading to inconsistent groove depth or wavy cuts.

The DGJIG incorporates Flex-Tech adjustable support grub screws placed strategically along the rails to:

• Prevent deflection

• Improve groove consistency

• Maintain cutter stability

• Deliver uniform groove depth

This results in cleaner finishes and reduced rework.

Built for Accuracy & Durability

CNC-Machined Compact Grade HPL
Provides strength, rigidity and wear resistance.

Three Support Runners
Maximise router stability during cutting.

Etched Sight Lines
Allow quick and accurate positioning.

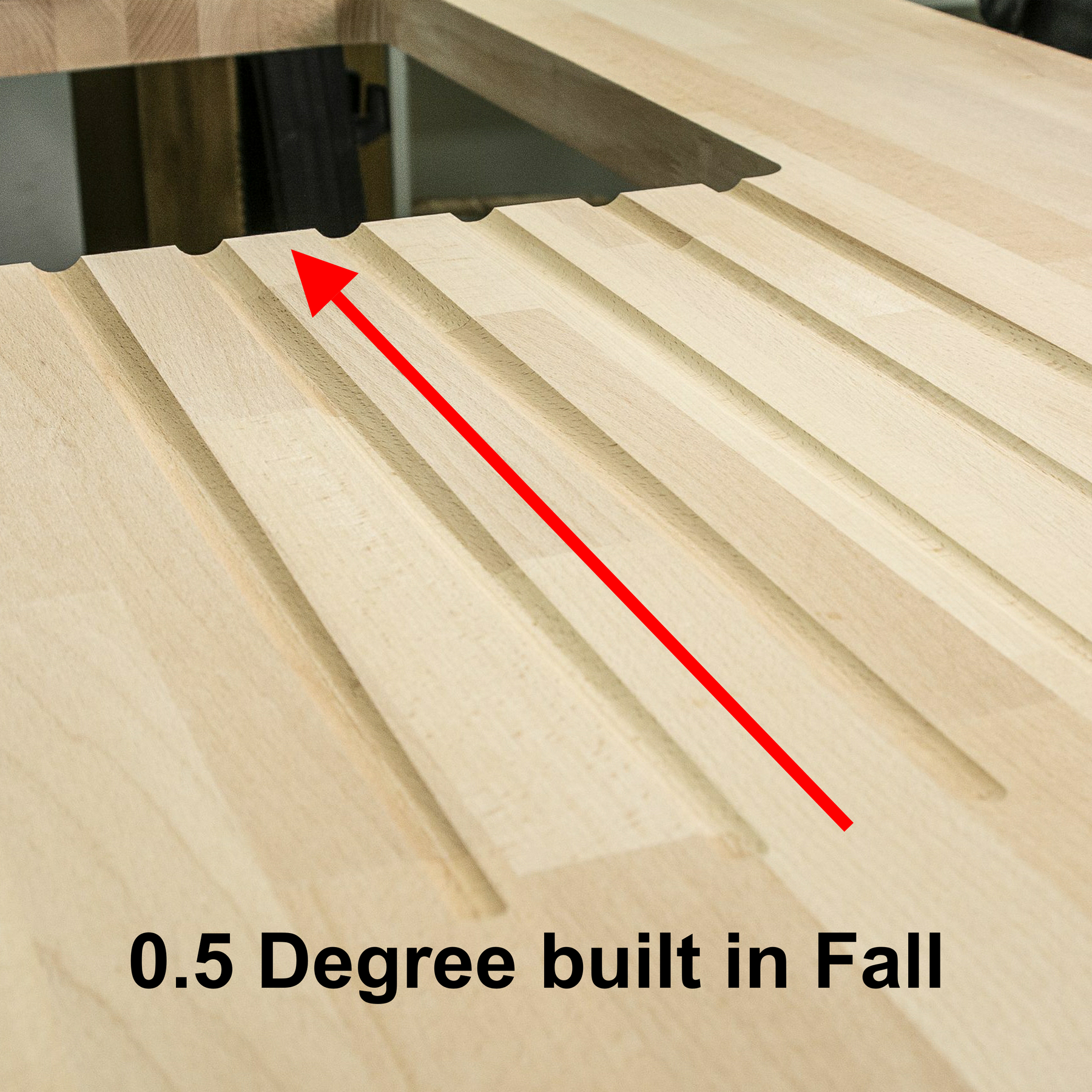

In-Built 0.5° Fall
Removes the need for packing spacers and simplifies setup.

Edge Guide Fixing Holes
Allow custom-made stops for repetitive installations.

Why Choose the DGJIG?

• Clean, consistent drainer grooves

• Reduced setup time

• Compatible with solid timber and compact laminate

• Stable performance with heavy routers

• Designed for professional kitchen fitting

Whether installing high-end solid timber worktops or compact laminate surfaces, the DGJIG provides controlled, repeatable routing performance.

Cutter & Router Requirements

• ½” plunge router (minimum 1300W)

• Suitable drainer groove cutter

• Two F-clamps

Recommended Cutter Options:

• Cove cutter 19.1mm (R9.5mm or R6.0mm radius)

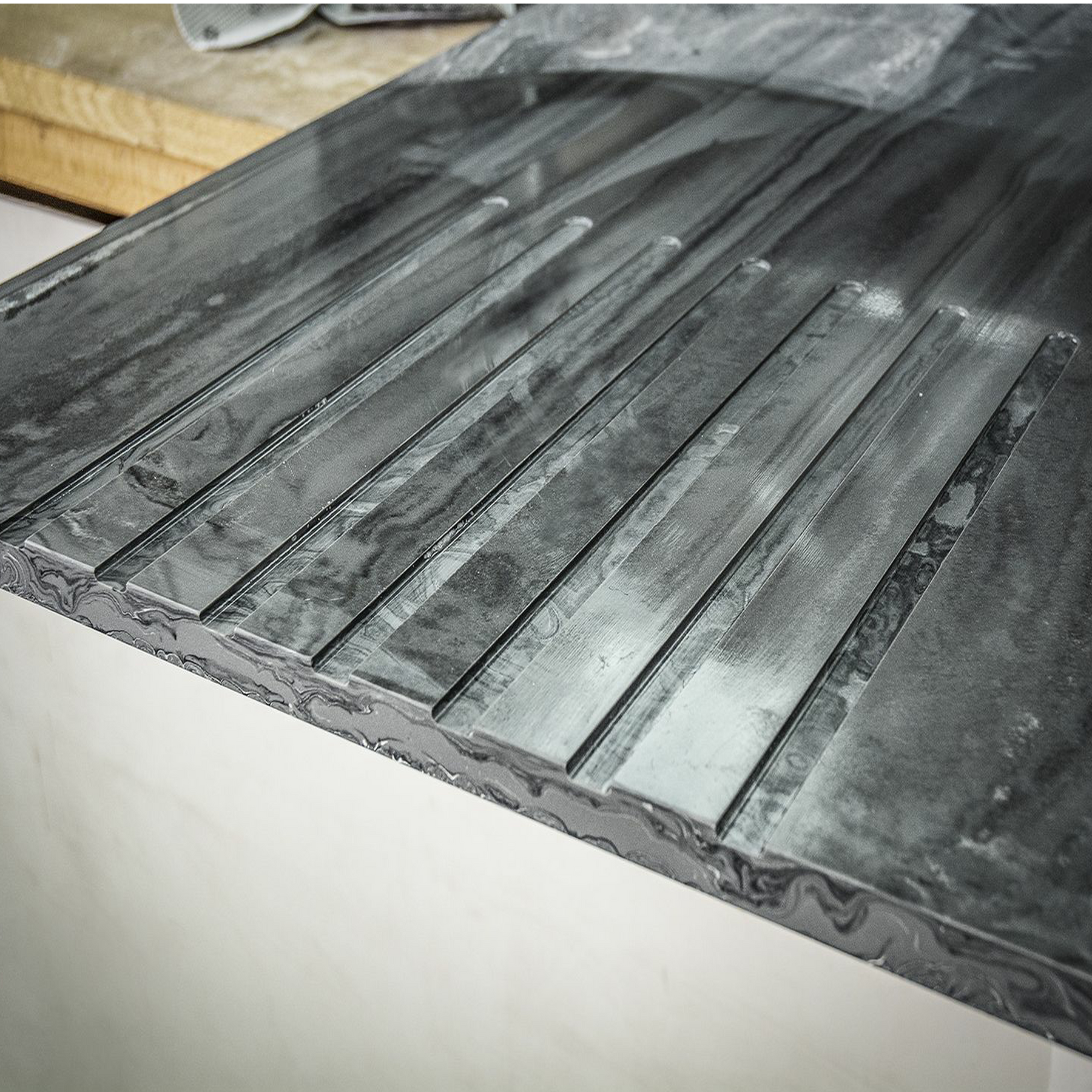

• Flat-bottom drainer cutter 16mm (2.5mm radius)

Specifications

Fall: 0.5°
Groove Pitch: 50mm
Groove Length: 455mm
Slat Width: 19.8mm
Length: 600mm
Width: 12mm
Weight: 4.3kg

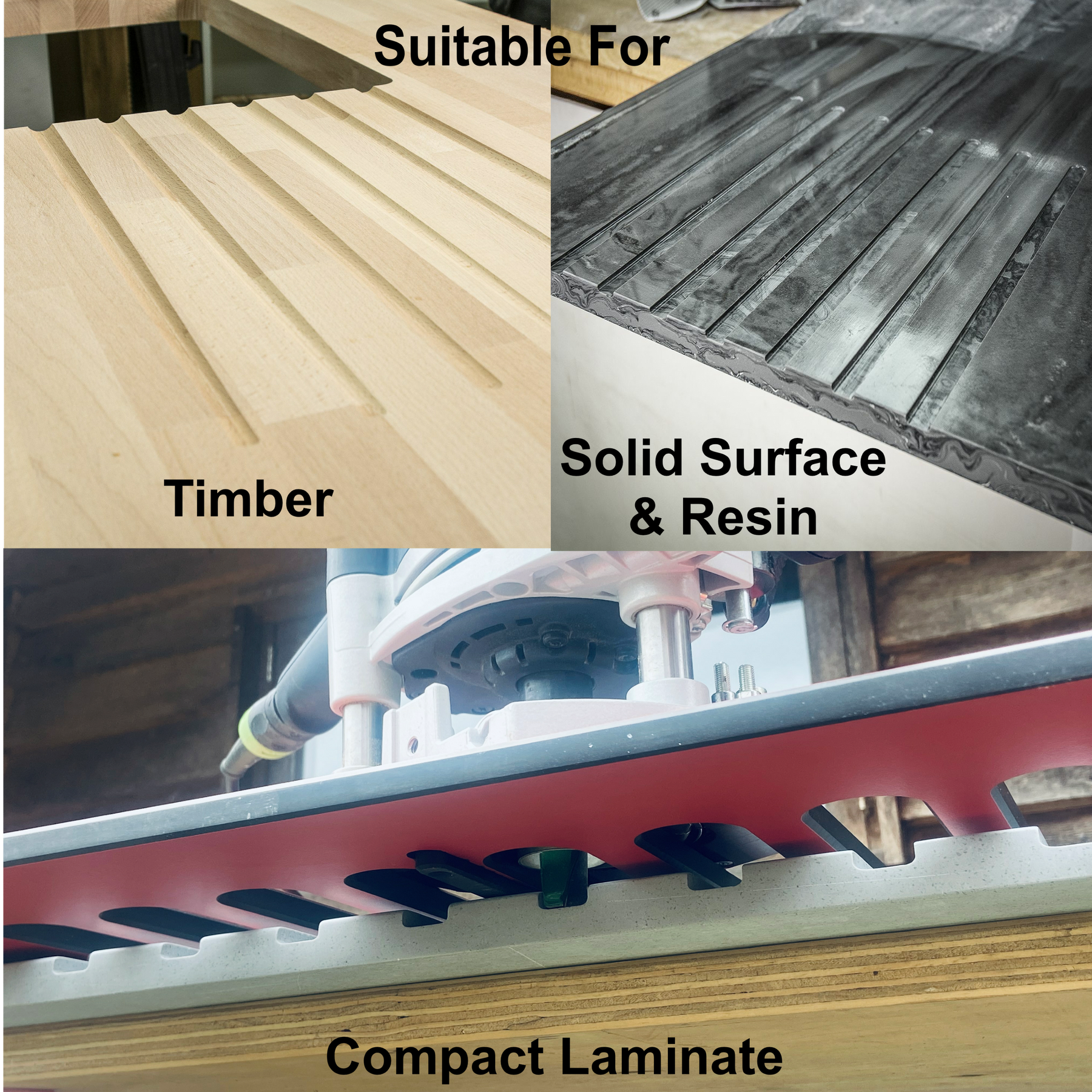

Ideal For

• Belfast sink installations

• Farmhouse sink installations

• Undermount sink drainer grooves

• Solid timber kitchen worktops

• Compact laminate worktops
