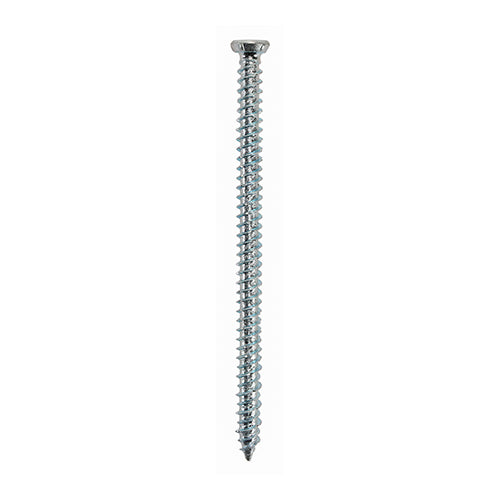

Concrete Screws Flat Countersunk Silver - 7.5 x 150 Timco 00150TCONZ

TIMco Product Code: 00150TCONZ
Concrete Screws Flat Countersunk Silver - 7.5 x 150 Timco 00150TCONZ
Concrete Screws Flat Countersunk Silver - 7.5 x 150 Timco 00150TCONZ
Concrete Screws Flat Countersunk Silver - 7.5 x 150 Timco 00150TCONZ

Concrete Screws Flat Countersunk Silver - 7.5 x 150 Timco 00150TCONZ

TIMco Product Code: 00150TCONZ
Regular price £16.98
/
Concrete Screws Flat Countersunk Silver - 7.5 x 150
  • Designed to replace traditional masonry fixings
  • TX3 TX Drive recess to reduce driver wear & prevent camming-out
  • Pack quantity - 100
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated for increased corrosion resistance
  • Low stock - 10 items left
  • Inventory on the way
VAT included. Shipping calculated at checkout.

Concrete Screws Flat Countersunk Silver - 7.5 x 150

100 Per Box

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

• Designed to replace traditional masonry fixings
• TX30 TX Drive recess to reduce driver wear & prevent camming-out
• Serrated V-threads to achieve optimum insertion into all masonry types
• Zinc plated for increased corrosion resistance
• High-Low thread on first 30mm to aid insertion and reduce torque
• Ideal for fitting windows and door frames
• Flat countersunk head with five locking ribs
• All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

Product Specifications
 Approval
BS 7671:2018
 Brand  TIMCO
 Corrosion Rating (1-5)  1 - Clean, dry & low humidity environments
 Drill Hole Ø (mm)  6
 Driver Bit Size  TX30
 Finish  Zinc & Clear Cr3
 Fixture Hole Size Ø (mm)  8
 Head Type  Flat Countersunk with Ribs
 Included Items  TX30 S2 Bit (Qty 1)
L (mm) 150
Material Carbon Steel
MFT (mm) 100
Min. Embed. Depth (mm) 50
Ø (mm) 7.5
Pack Dimensions L x W x H (mm) 174 x 118 x 60
Pack Qty 100
Pack Weight (kg) 2.92
Point Type Sharp
Recess Type TX Drive
Size Ø x L (mm) 7.5 x 150
Substrates Wood, Concrete, Brick, Block, Stone
Thread Coverage Fully Threaded
Thread Ø (mm) 7.5
Thread Type High-Low Start with V Flutes
