One Jig giving you multiple designs for draining boards from flat bottomed drainers to curved fans.

This jig can also be used for insetting Hot rods.

Comes complete with Scribe-Master Anti-Bow Technology to prevent dishing on the draining board when using the templates.

This package comes with 1 template included

Straight Slot/Straight Fan Template

The X and Y-axis slide and carriage allows for free movement. The jig can be used without plates to create a flat bottomed drainer with a constant 0.5º fall to the sink.

When used with the design templates a variety of designed can easily be achieved.

• Easy to use Draining Groove jig with built in 0.5º fall
• Various TemPlate designs available to create a number of designs.
• Patented Anti-Bow Technology - Stops any chance of a bowing jig from the heavier router in todays market, preventing dishing of the drainer cut out.
• Total flexibility to position drainer grooves wherever the end users feels fit.
• Can be used to create totally unique drainer designs.
• The outer frame has index holes every 50mm to restrict slot lengths using the 2 index pins supplied.
• Can be used with a variety of cutters from standard Cove cutters to the newer style flat bottomed cutter.
• Suitable for a variety of surfaces from Solid Timber to Polymer Resins and Compact Laminates.
• Templates can be removed to check your work and then simply replaced without any further setting up.
• Laser etched markings to assist in fast and accurate set up.
• Use with any plunge router with a 30mm Guide Bush.
• CNC machined from High Pressure Laminate for durability and accuracy.
• Designed, manufactured & Patented in the UK.

📄 Download Instruction Manual (PDF)

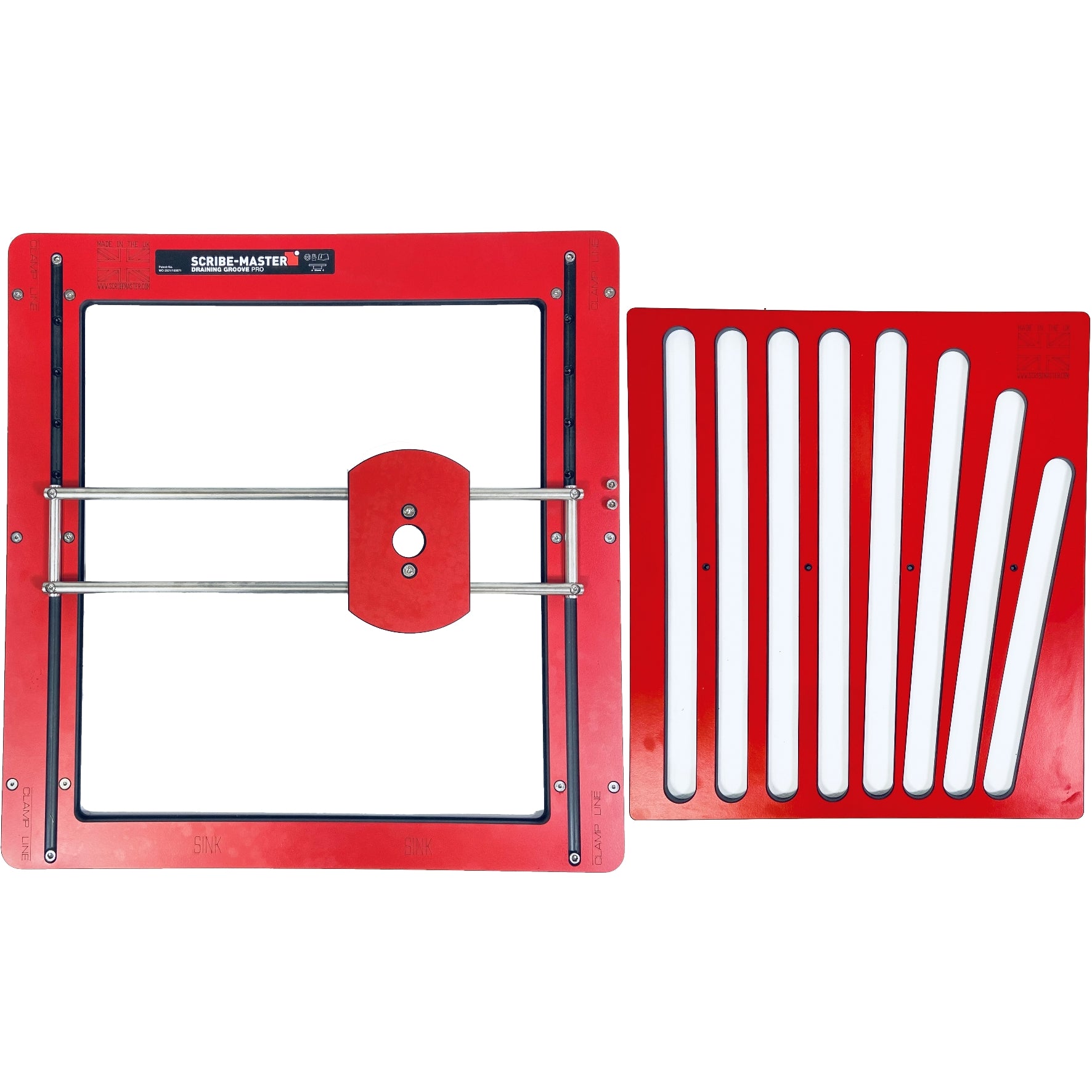

The standard pack contains 1 x DGPRO outer frame but can also be bought with 1 insert plate (Straight & straight fan) or 2 Insert plates (Straight and straight fan Plus Curved Fan and Lightning Fan)

The draining groove jig has the Patented Anti-Bow technology built in which allows for a series of stainless steel grub screws to be set to the worksurface to stop dishing in the worktop and prevent the pooling of water on the drainer.

An adjustable stainless steel grub screw on the underside of the insert prevents it bowing while you're routing whilst still providing you with a constant 5º fall for the draining of water.

• Easy to use Draining Groove jig with built in 5º fall
• Patented Anti-Bow Flexi-Tech Technology - Stops any chance of a bowing jig from the heavier router in todays market, preventing dishing of the drainer cut out.
• Can be used with a variety of cutters from standard Cove cutters to the newer style flat bottomed cutter.
• Suitable for a variety of surfaces from Solid Timber to Polymer Resins and Compact Laminates.
• Laser etched markings to assist in fast and accurate set up.
• Use with any plunge router with a 30mm Guide Bush.
• CNC machined from High Pressure Laminate for durability and accuracy.
• Designed, manufactured & Patented in the UK.

• Patent App. No. GB1718517.4
