SCRIBE-MASTER SMPRO

Professional Coping Jig for Skirting Boards, Baseboards & Dado Rails

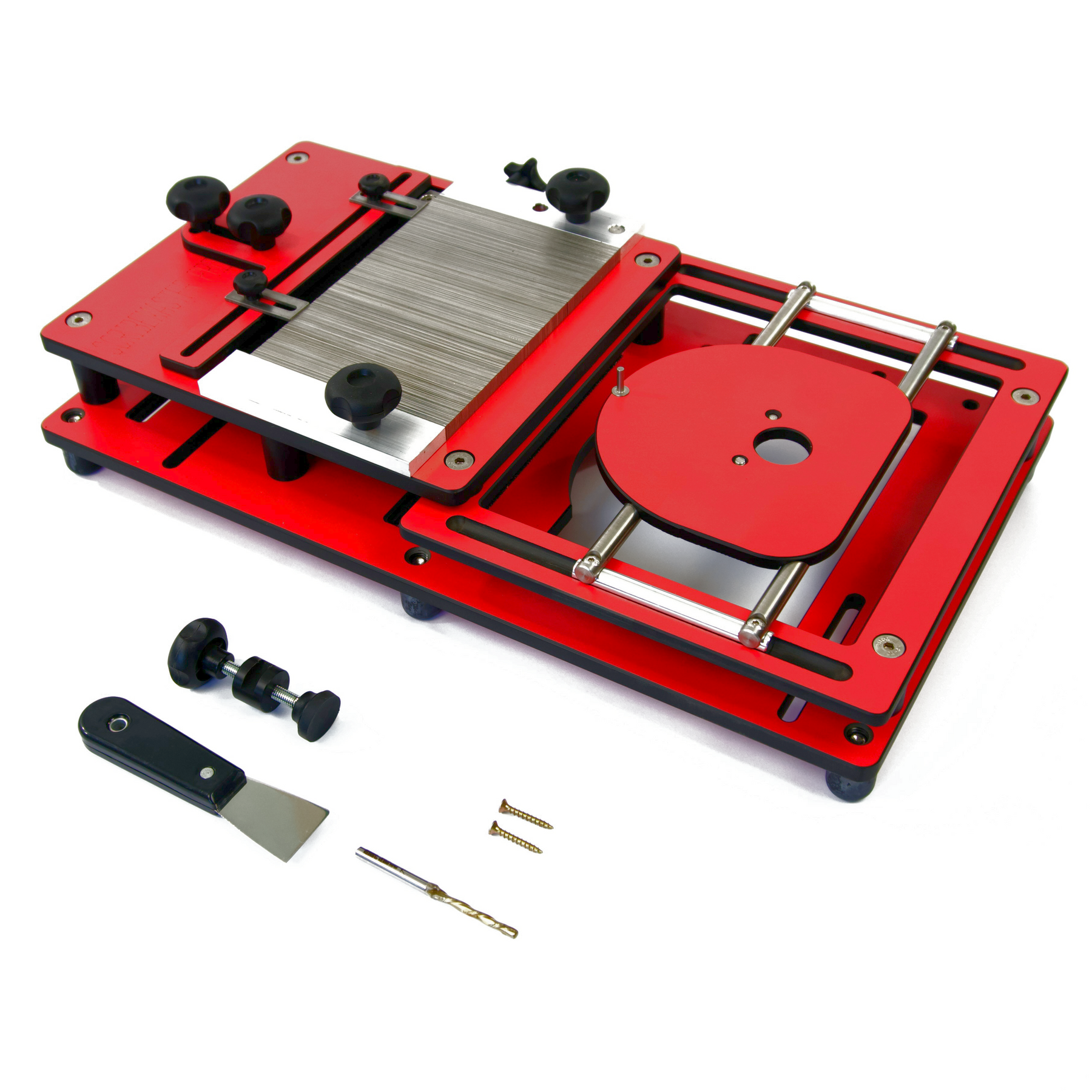

The SCRIBE-MASTER SMPRO Coping Jig is a precision router coping jig designed to produce fast, accurate copes on skirting boards, baseboards and dado/chair rails.

Designed for professional installers, this skirting coping jig allows carpenters, kitchen fitters and trim installers to create perfectly fitting internal joints in seconds. Compared to traditional coping saw methods, the SMPRO dramatically speeds up the coping process while delivering consistently clean results.

Built from durable High Pressure Laminate, this professional coping jig for skirting boards works with a plunge router and 30mm guide bush to produce accurate left- and right-hand copes every time — even when working with warped boards or uneven corners.

What the SMPRO Coping Jig Does

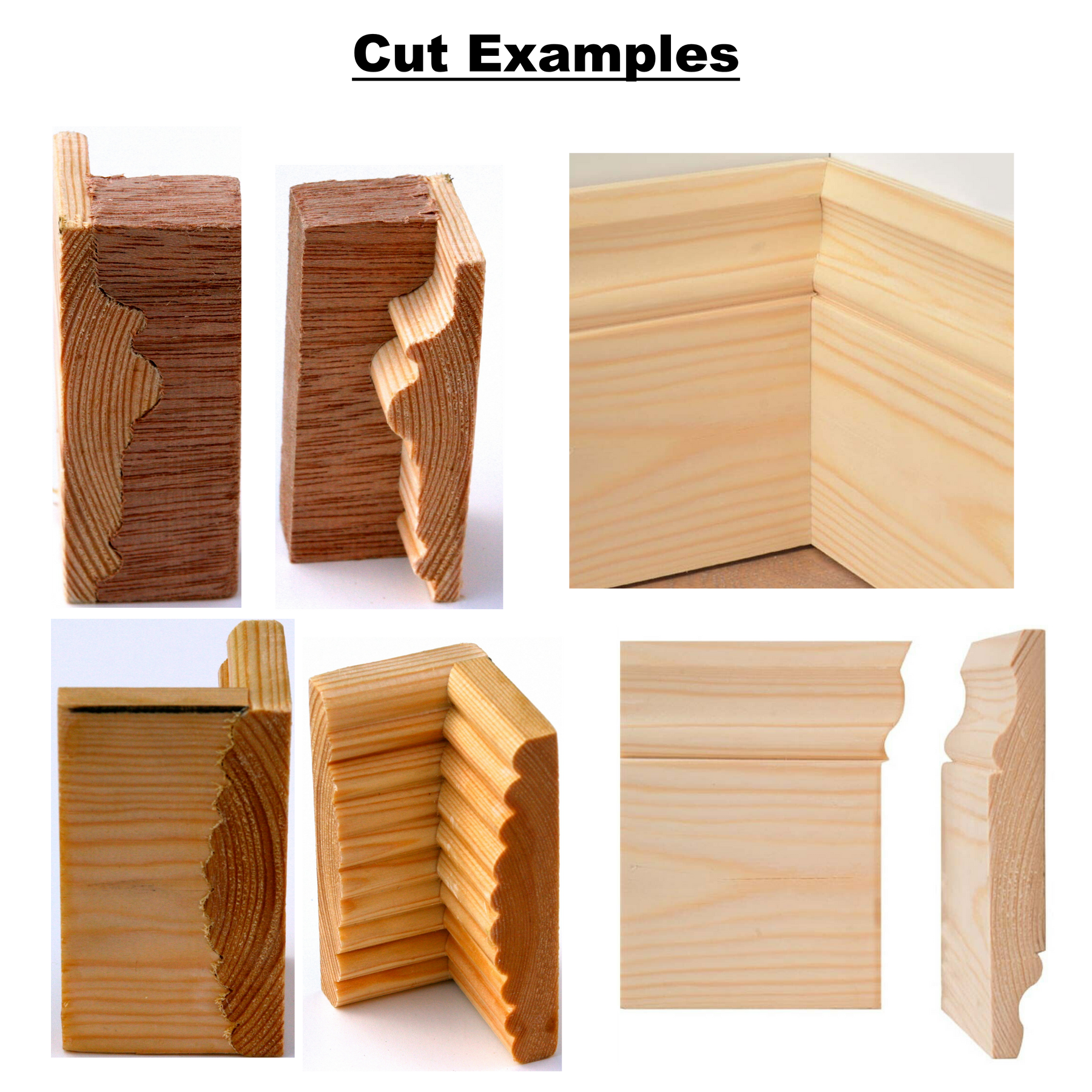

• Produces precise left and right-hand skirting board copes
• Works as a coping jig for skirting boards, baseboards and dado rails
• Up to 10x faster than manual coping saw methods
• Handles mouldings up to 195mm board height
• Works with boards up to 32mm thick
• Produces clean, professional internal joints
• Maintains accuracy even on out-of-square corners and uneven walls

This router coping jig is ideal for professionals who regularly install skirting boards and require a fast, reliable skirting board coping tool.

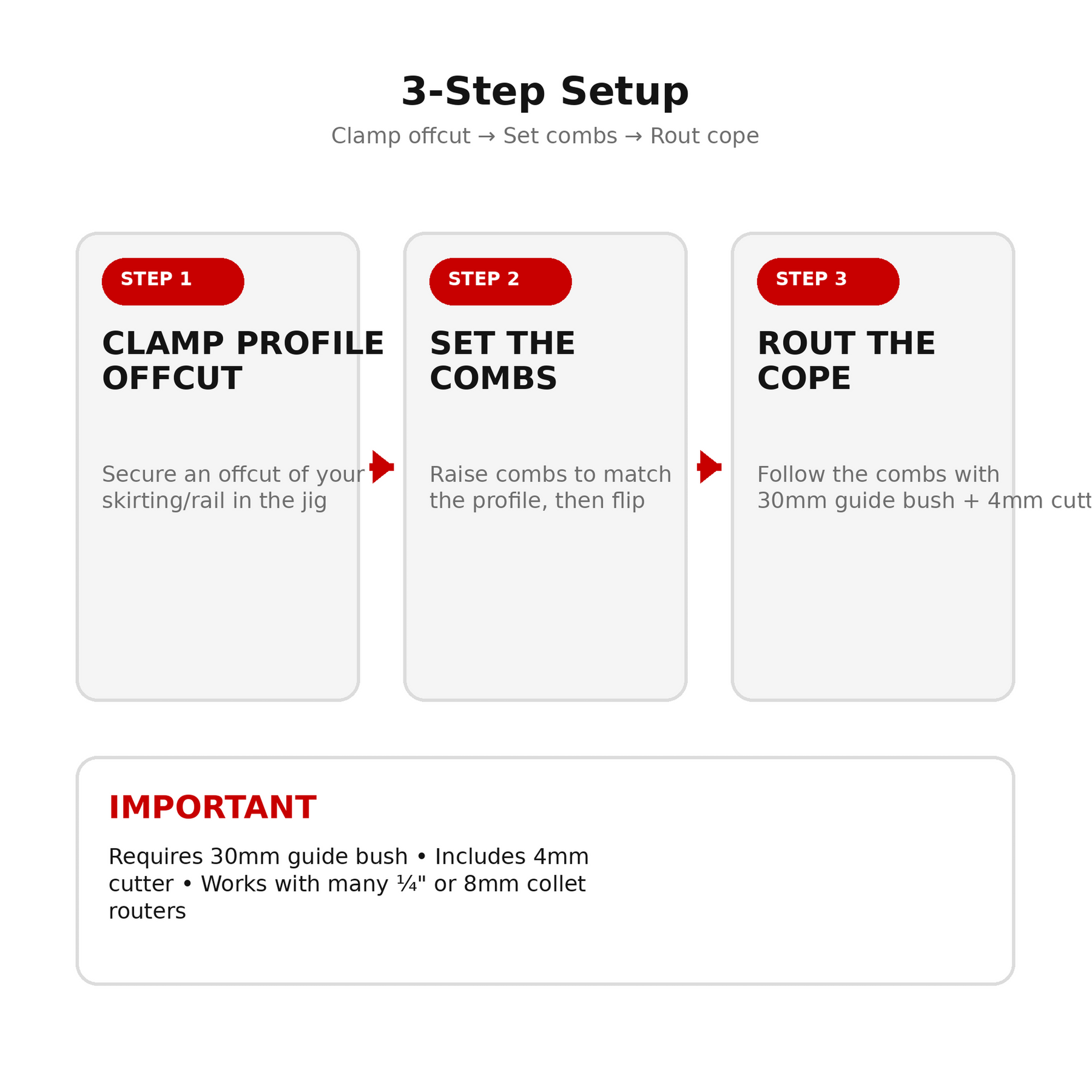

How the Coping Jig Works

The SMPRO uses a mechanical profile copying system to accurately reproduce the moulding shape.

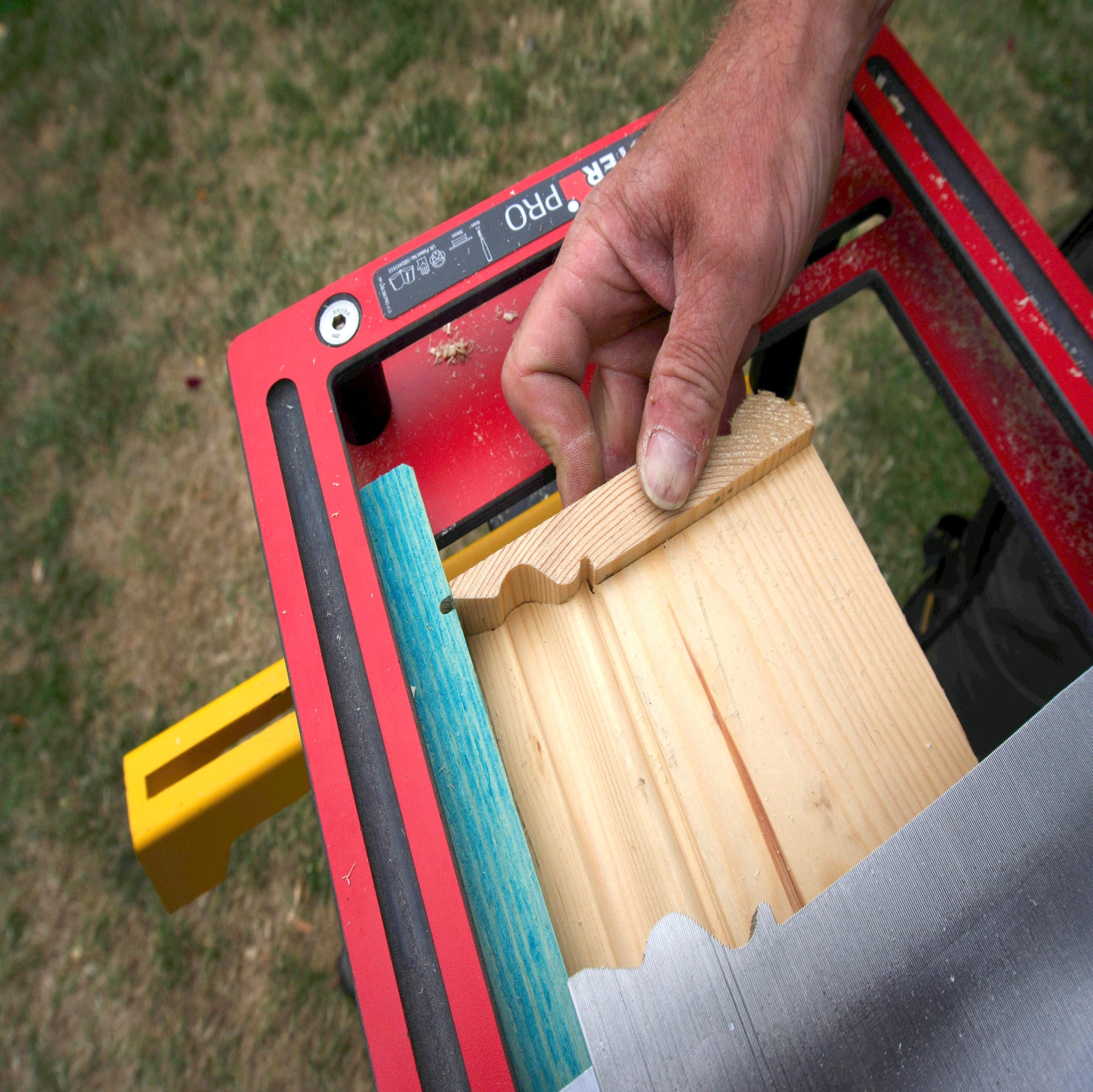

1. A steel comb system captures the profile of the moulding.

2. The comb assembly is reversed to create the coping contour.

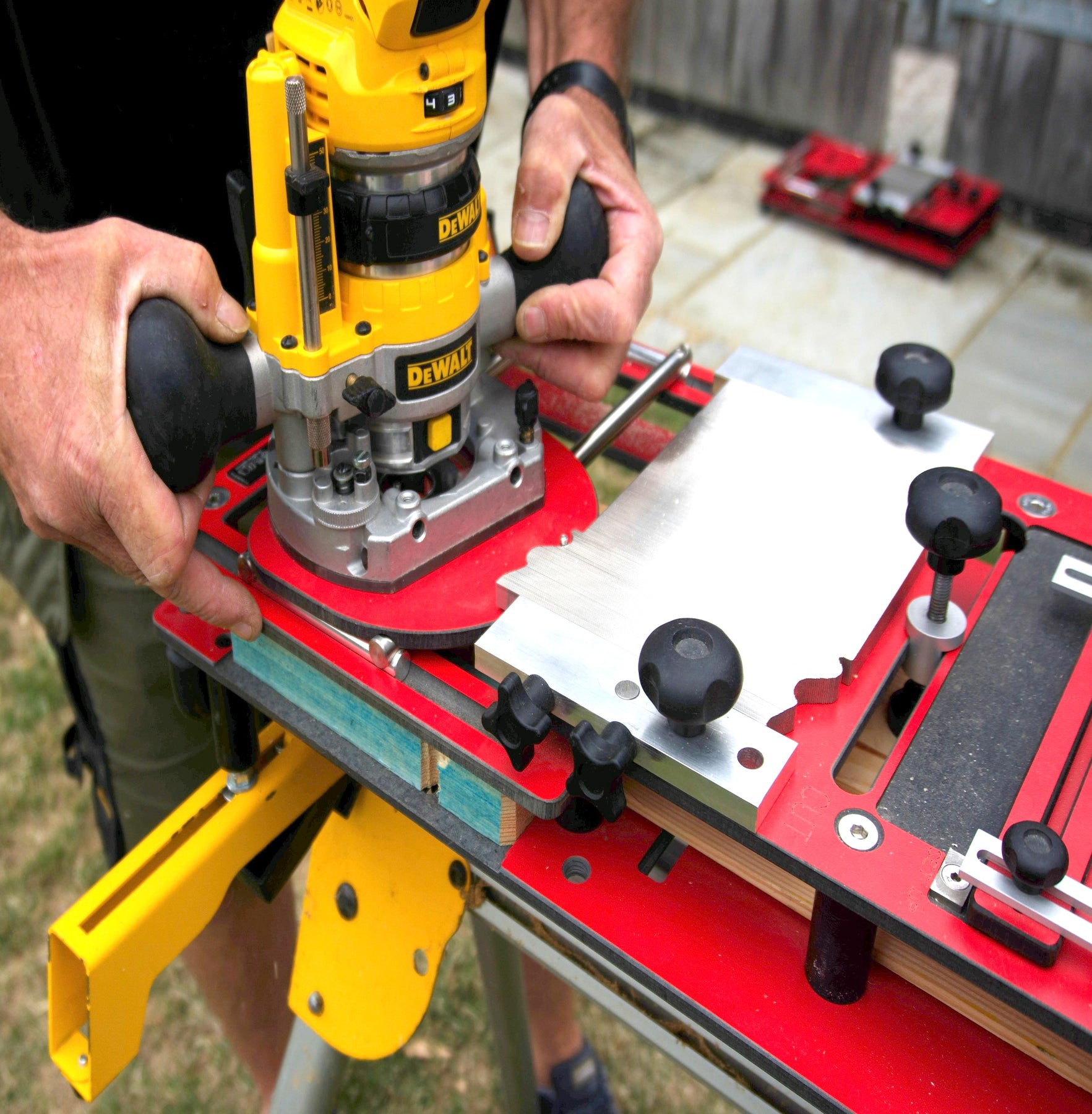

3. A copy pin follows the captured profile while the router cutter creates a precise cope.

This system removes guesswork and allows installers to produce repeatable results when fitting skirting boards, trim and baseboards.

The result is a clean coping joint that fits perfectly every time.

Built for Site & Workshop Use

High Pressure Laminate Construction

Provides excellent rigidity and dimensional stability for consistent coping accuracy.

Fully Adjustable Profile Capture

The comb system adapts to a wide range of moulding shapes, allowing the jig to function as a baseboard coping jig, skirting coping jig and trim coping jig.

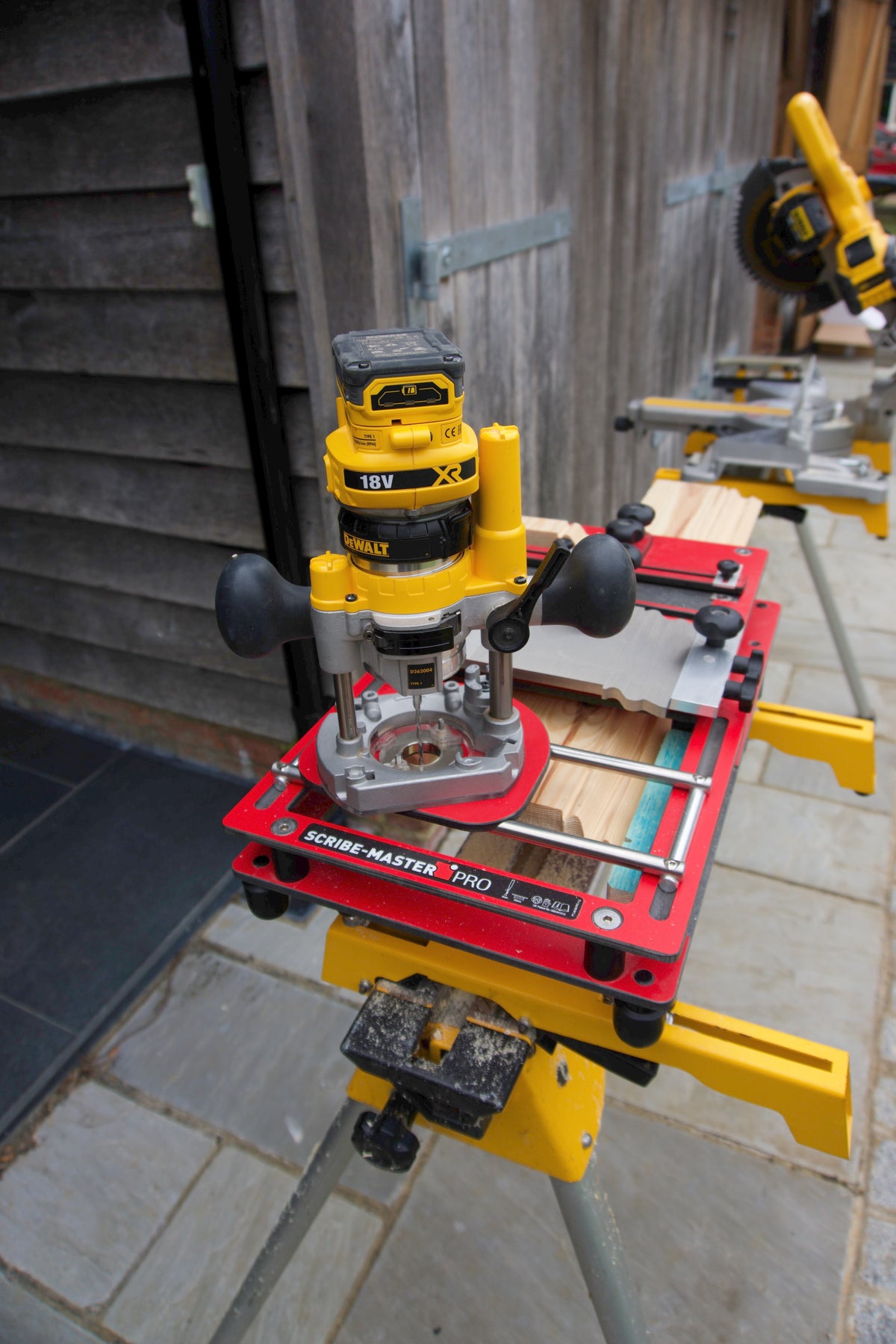

Stand-Alone or Bench Mounted

The jig can be used independently or mounted to a mitre saw stand using the optional mounting kit.

Pre-Assembled and Ready to Use

Minimal setup required, making the SMPRO ideal for site work and professional installations.

Why Choose the SMPRO Coping Jig?

• Significantly faster than manual coping saw techniques
• Produces clean, accurate skirting board coping joints
• Works on hardwood, softwood and MDF mouldings
• Reduces installer fatigue during large projects
• Provides consistent results across multiple boards
• Designed specifically for professional carpenters and installers

Whether you are fitting a full house of skirting or completing detailed trim carpentry, the SCRIBE-MASTER router coping jig helps you work faster while achieving professional results.

Router & Tool Requirements

• Medium or heavy-duty plunge router
• 30mm guide bush
• Compatible with 1/4" or 1/2" routers

Includes a 4mm x 1/4" shank HSSE single flute spiral cutter, ideal for MDF and softwood skirting boards.

Specifications

Maximum Board Height: 195mm
Maximum Board Thickness: 32mm
Minimum Component Length: 300mm
Dimensions: 600 × 370 × 170mm
Weight: 5.92kg

Patent No. GB2441513

Ideal For

• Kitchen fitters
• Trim carpenters
• Skirting board installers
• Baseboard installation
• Dado rail fitting
• Professional finishing work

The SMPRO is the perfect coping jig for skirting board installation and trim work.

What's Included

• 1 × Scribe-Master Pro Coping Jig
• 1 × 4mm Precision Router Cutter (pre-fitted)
• Instruction manual

Optional Accessories (Sold Separately)

• SMPROCASE – Carry / Storage Case
• SMPROMOUNT – Mounting Kit for Mitre Saw Benches
• SMPROCUT – Spare 4mm Cutter

Whether you're installing skirting boards, baseboards or decorative trim, the SCRIBE-MASTER SMPRO coping jig helps you produce clean, professional coping joints faster and with greater accuracy.
